Hardware

Build Your Own Wdeck

Parts list, wiring diagram, and 3D case files for assembling your Wdeck macro pad.

Parts List Wiring Diagram

Hardware Parts

Everything you need to build your own Wdeck Ultimate station.

ESP32 Core

WROOM, S2, or S3 DevKit

1x Module
Buy Module

3.5" Touchscreen

480x320 SPI TFT (ILI9488). Must have Capacitive or Resistive touch layer, otherwise touch will not work!

1x Display
Buy Display
3D Case

3D Case (STL)

Printables Community Files

Case Geometry
Get STL Files
M3 Hardware

Assembly Hardware

M3x14mm countersunk screws

5x Screws

Wiring Diagram

The wiring scheme for connecting the ESP32 module to the touchscreen display. Or open the Interactive Wiring Explorer.

3.3V→VCC
GND→GND
GPIO15→CS
GPIO4→RESET
GPIO2→DC / RS
GPIO23→SDI(MOSI) & T_DIN
GPIO18→SCK & T_CLK
GPIO32→LED
GPIO21→T_CS
GPIO19→T_DO
GPIO27→T_IRQ

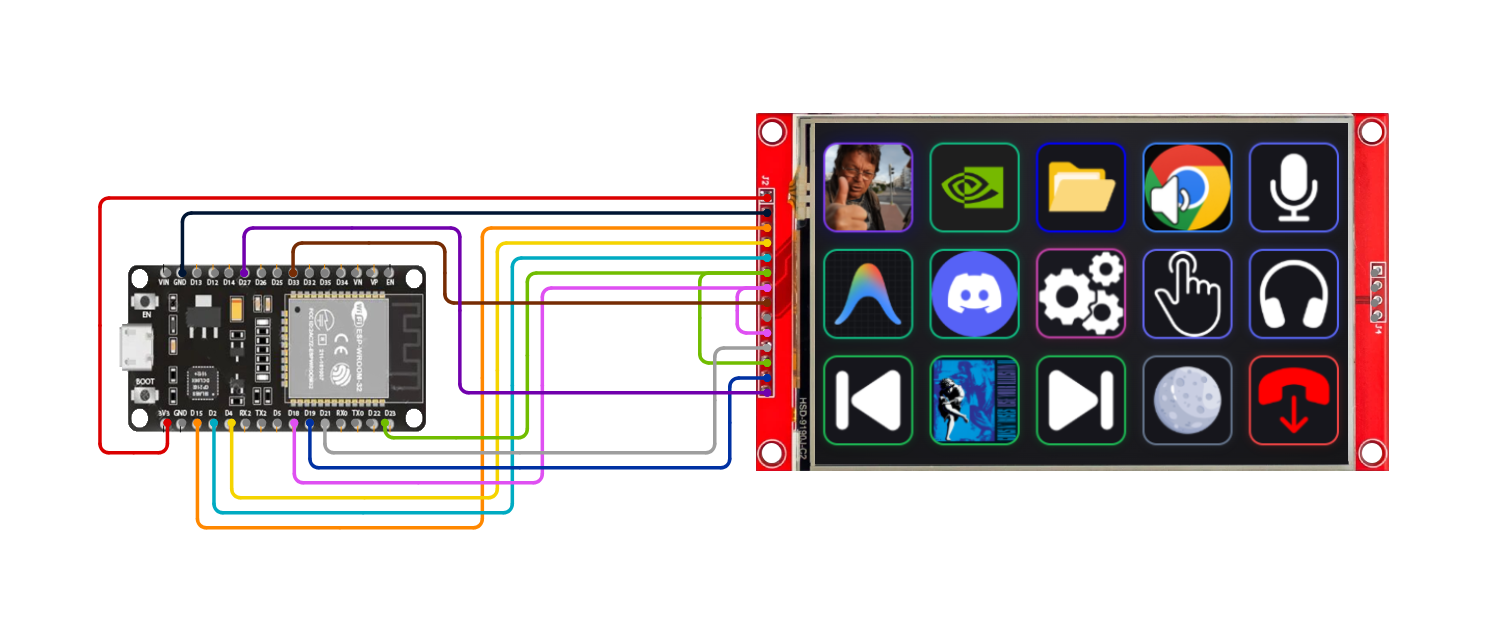

Wdeck Wiring Diagram

3D printable enclosure

Choose your filament colors and mix different case parts to match your desk setup.

Create your own color combo

The enclosure is easy to print and is split into separate parts: the main body, the stand, and the front cover. Print each in a different filament color to create your own custom color combination.

Royal Purple Cyber Blue Amber Glow Emerald Green

Change covers in seconds. Print neon colors, matte black, transparent, or carbon fiber style plates. Your console, your style.

Printables STL Files
Wdeck Color Changing Case Cover

Pro Tip: Soldering

Keep your iron around 320°C for the ESP32 pins to avoid damaging the pads.

Pro Tip: 3D Printing

Print the case with 0.2mm layer height and PETG for better durability and thermal resistance.

Got all the parts? Follow the Tutorial.

See our step-by-step assembly guide to put it all together.
